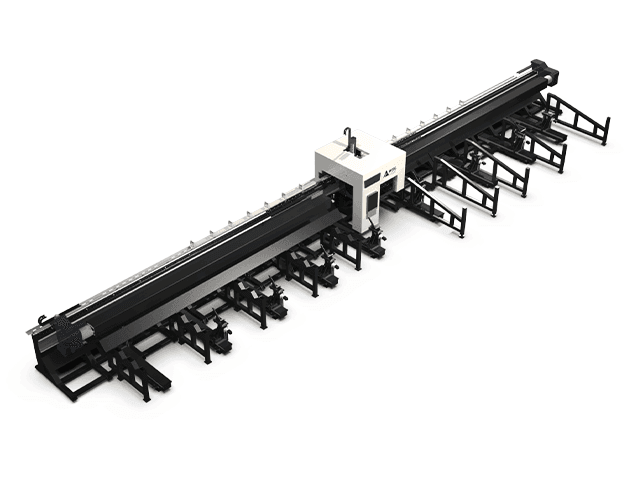

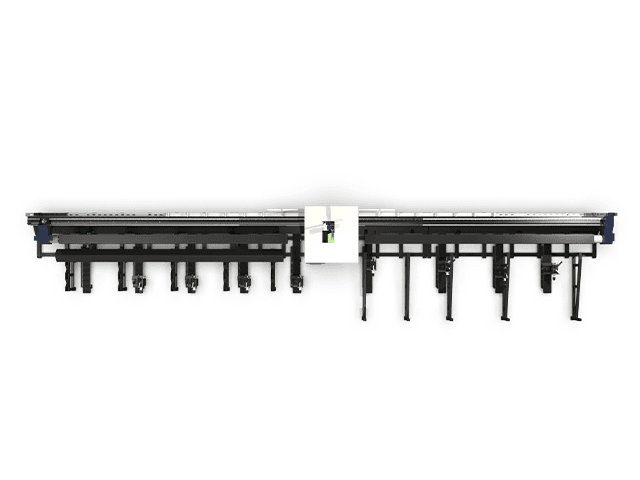

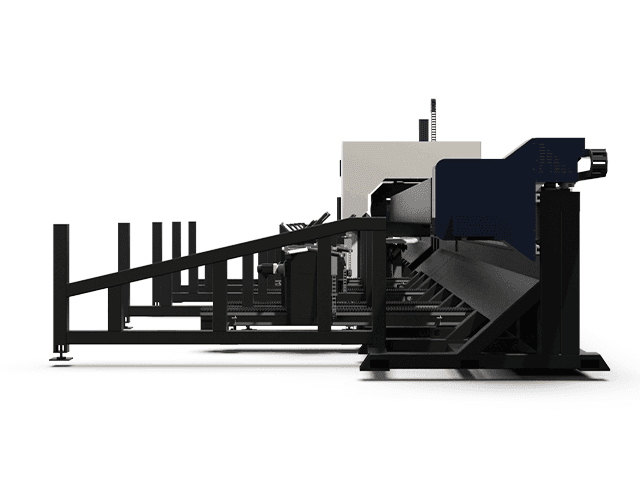

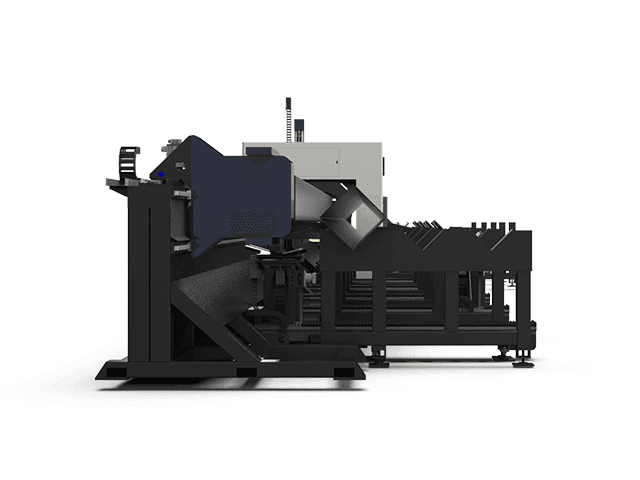

Three-Chuck Fiber Laser Tube Cutting Machine
Eliminate material waste with our three-chuck fiber laser tube cutting machine. Featuring zero-tailing technology and maximum clamping stability for heavy pipes. Get a quote today!
PRODUCT FEATURES
Ready-to-Use Finish
Narrow gaps and smooth edges mean your parts go straight from the laser to assembly—no grinding required.
Green &Smart Manufacturing
A fully enclosed,low-noise design that prioritizes operator safety and environmental compliance.
Maximum ROI
Built for heavy-duty,continuous operation to maximize throughput and minimize your long-term processing costs.
High-Speed CAD/CAM Workflow
Rapid,non-contact cutting paired with intuitive software for lightning-fast turnaround times from design to finished part.
Unmatched Capability
From hardened tool steel to exotic alloys,our high-energy laser melts through materials that break conventional tools.
Preservation of Material Quality
Because laser cutting is a non-contact process,it exerts
zero mechanical stress on your parts.The concentrated energy beam ensures minimal heat soak,preventing the warping or “bowing”often seen in traditional punching.This ensures that even the most delicate precision parts maintain their structural and aesthetic integrity.

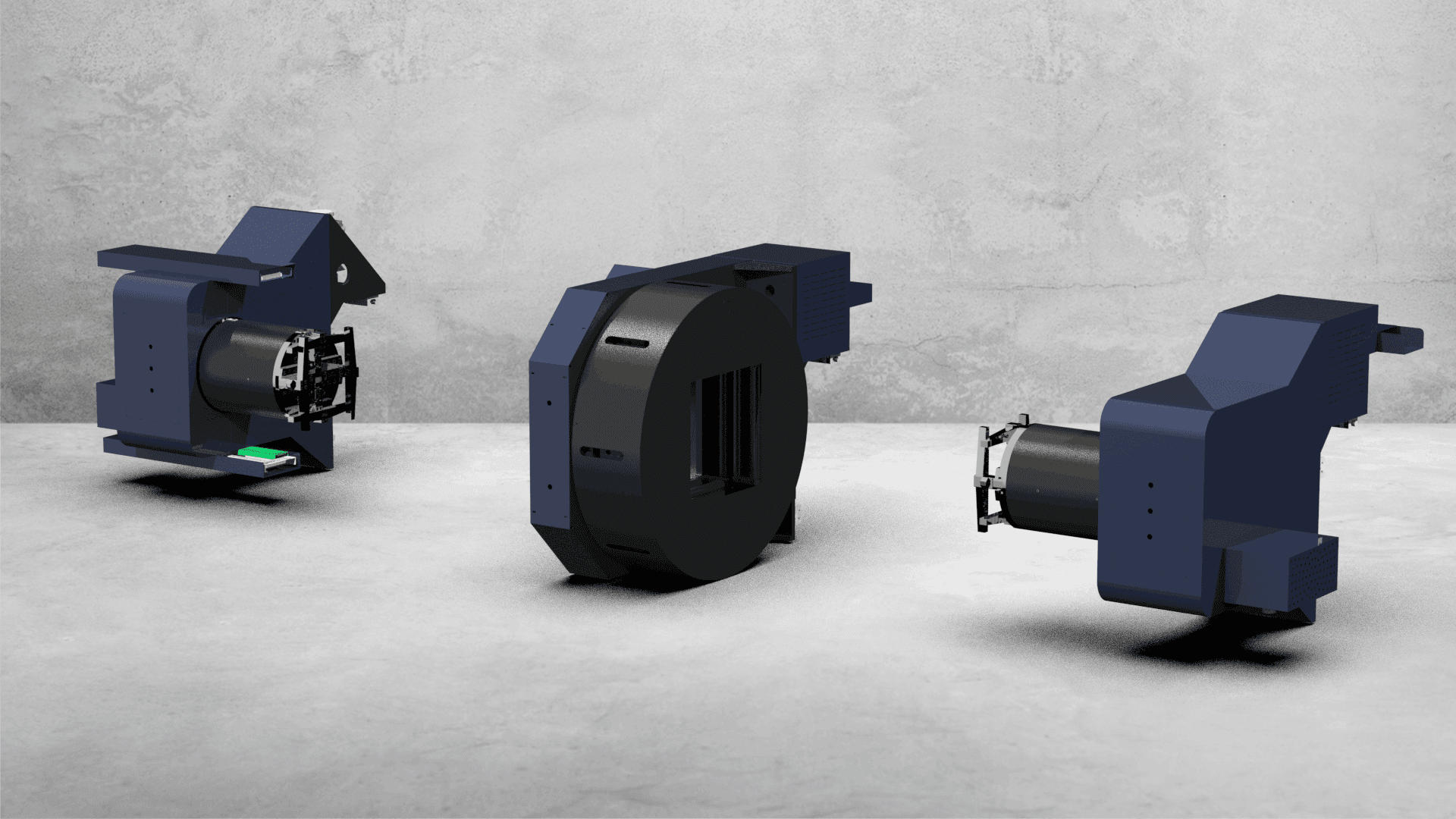

Triple-Chuck Synergy: True “0” Tailing for Maximum Profit
Maximizing material usage drives profit in CNC laser cutting. The YH240TC6 heavy-duty laser machine features a synchronous three-pneumatic-chuck system that delivers true zero-tailing, saving up to 500mm of pipe waste per run compared to dual-chuck models. It supports tubes up to 12 meters with zero sag, processing round, square, and box sections alongside complex H-beams and U-channels with exceptional precision.
MACHINE PARAMETERS
Processing Format
17.5*2.8m
Laser Type
Fiber Laser
Laser Power
1000-20000W
Laser Wavelength
1070±3nm
Rated Output Power
≥12000W
Operating Temperature
5-40°
Positioning Accuracy
≤±0.03mm/m
Z-axis Travel
150mm
Maximum Empty Line Speed
≤110m/min
No-load Composite Acceleration
1.0G
Power Supply Rated Parameters
Three-phase AC 380V 50Hz
Total Power Protection Level
IP54
